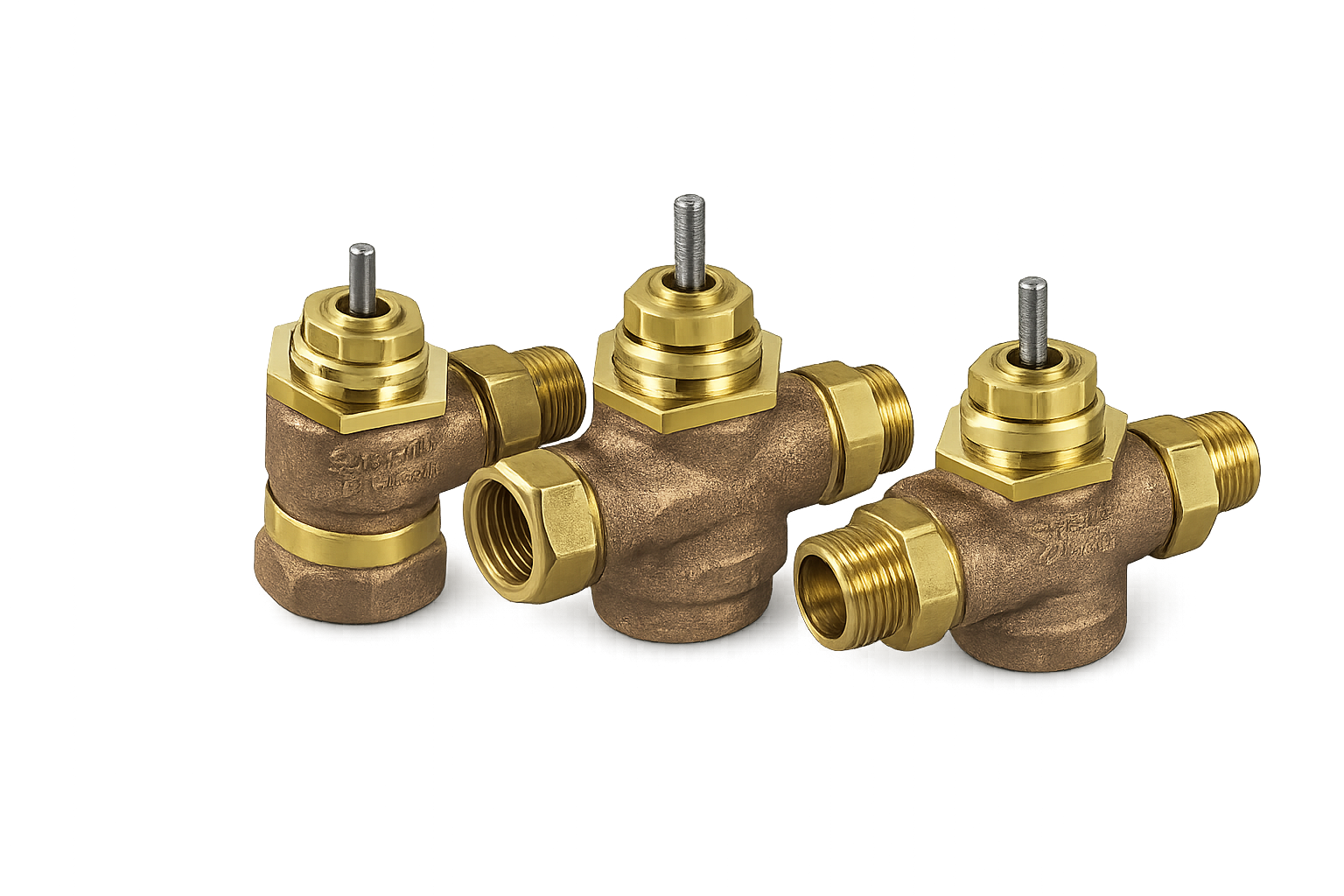

VT2313-VS2313-Series
The Erie PopTop VT2313/VS Series is a versatile zone valve assembly family for hydronic heating and cooling applications. Available in 2-way and 3-way configurations, 1/2–1 inch sizes, sweat and NPT connections. Multiple actuator options including normally open, normally closed, and auxiliary switch variants. VS models support steam.
Temperature Range: 32–199°F (0–93°C)
Request a Quote →Specifications
| Size | 1/2–1 in |
| Configuration | 2-Way / 3-Way |
| Connection | Sweat / NPT |
| Actuator | Spring Return, 24VAC |
| Cv | Multiple |
| Media | Water, Glycol 25–50%, Steam (VS models only) |
| Fail Position | Spring Return (N.O. or N.C. configuration dependent) |
| Aux Switch | Available on select models |
| Pressure | 25–30 psi close-off, 400 psi static |
| Notes | 2-position on/off, fan coil & baseboard — contact us with your spec |
Applications
- Hydronic Zone Control
- Fan Coil Units
- Baseboard Heating
- Steam Control (VS)
- Building Automation Systems
- Commercial HVAC
