Thermostats
Schneider Electric Viconics programmable thermostats for commercial HVAC and building automation. BACnet communicating and standalone models for RTU, AHU, and heat pump applications.

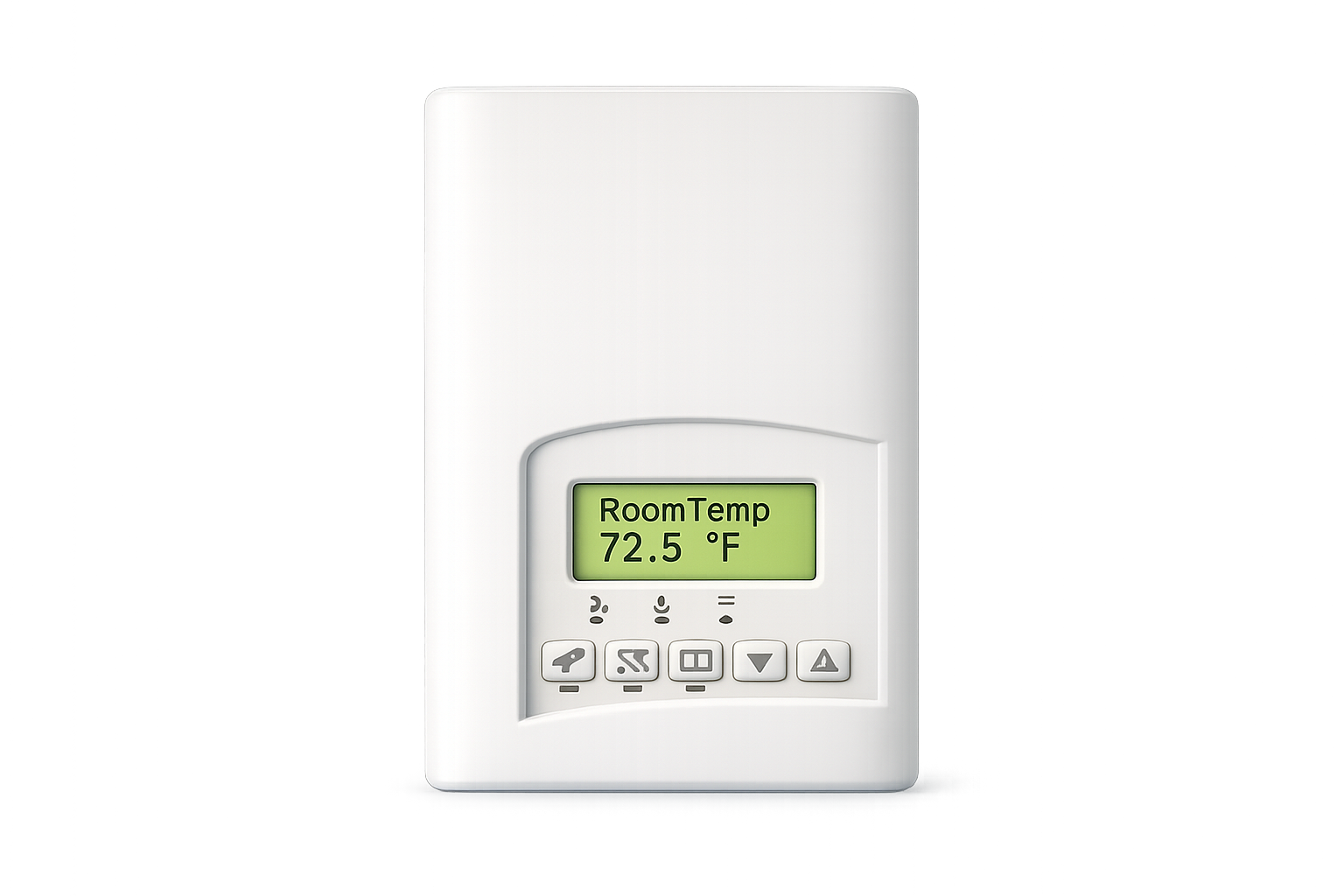

Schneider Electric Viconics VT7600 Series
Digital display, single or multistage, 7-day programmable PI thermostats for commercial HVAC systems. Compatible with rooftop units, air handling units, and heat pumps. BACnet MS/TP communicating models available.
| Model | Stages | Application | Protocol | Programmable | Voltage | Notes | |
|---|---|---|---|---|---|---|---|
| VT7652B5031 | 2H / 2C | RTU / AHU | Standalone | Yes | 20–30 VAC | Local scheduling, economizer, PIR ready, network ready | Request Quote → |
| VT7652B5031B | 2H / 2C | RTU / AHU | BACnet | Yes | 20–30 VAC | BACnet MS/TP, local scheduling, economizer, PIR ready | Request Quote → |
| VT7652F5031 | Mod H / 2C | RTU / AHU | Standalone | Yes | 20–30 VAC | Modulating heat, local scheduling, economizer, PIR ready, network ready | Request Quote → |
| VT7652H5031B | 3H / 2C | Heat Pump | BACnet | Yes | 20–30 VAC | BACnet MS/TP, local scheduling, economizer, PIR ready | Request Quote → |
| VT7656B5031 | 2H / 2C | RTU / AHU | Standalone | Yes | 20–30 VAC | Built-in economizer control, local scheduling, PIR ready, network ready | Request Quote → |
Frequently Asked Questions
What is the difference between VT7652B5031 and VT7652B5031B?
Both are 2H/2C programmable thermostats. The VT7652B5031B adds BACnet MS/TP communication for integration with building automation systems and includes a blank cover.
Which Viconics thermostat is right for a heat pump application?
The VT7652H5031B is specifically designed for heat pump control with 3 heating and 2 cooling stages, and includes BACnet MS/TP communication.
Do these thermostats support remote sensors?
Yes. The VT7600 series supports both internal and remote sensor configurations for flexible installation in commercial HVAC systems.
Need a different thermostat?
We can source any Schneider Electric Viconics thermostat. Submit a quote request with your part number.
Request a Quote
