Controllers
Schneider Electric SE8000 series advanced room controllers for rooftop units, heat pumps, and indoor air quality management. BACnet MS/TP communicating with integrated RH sensing.

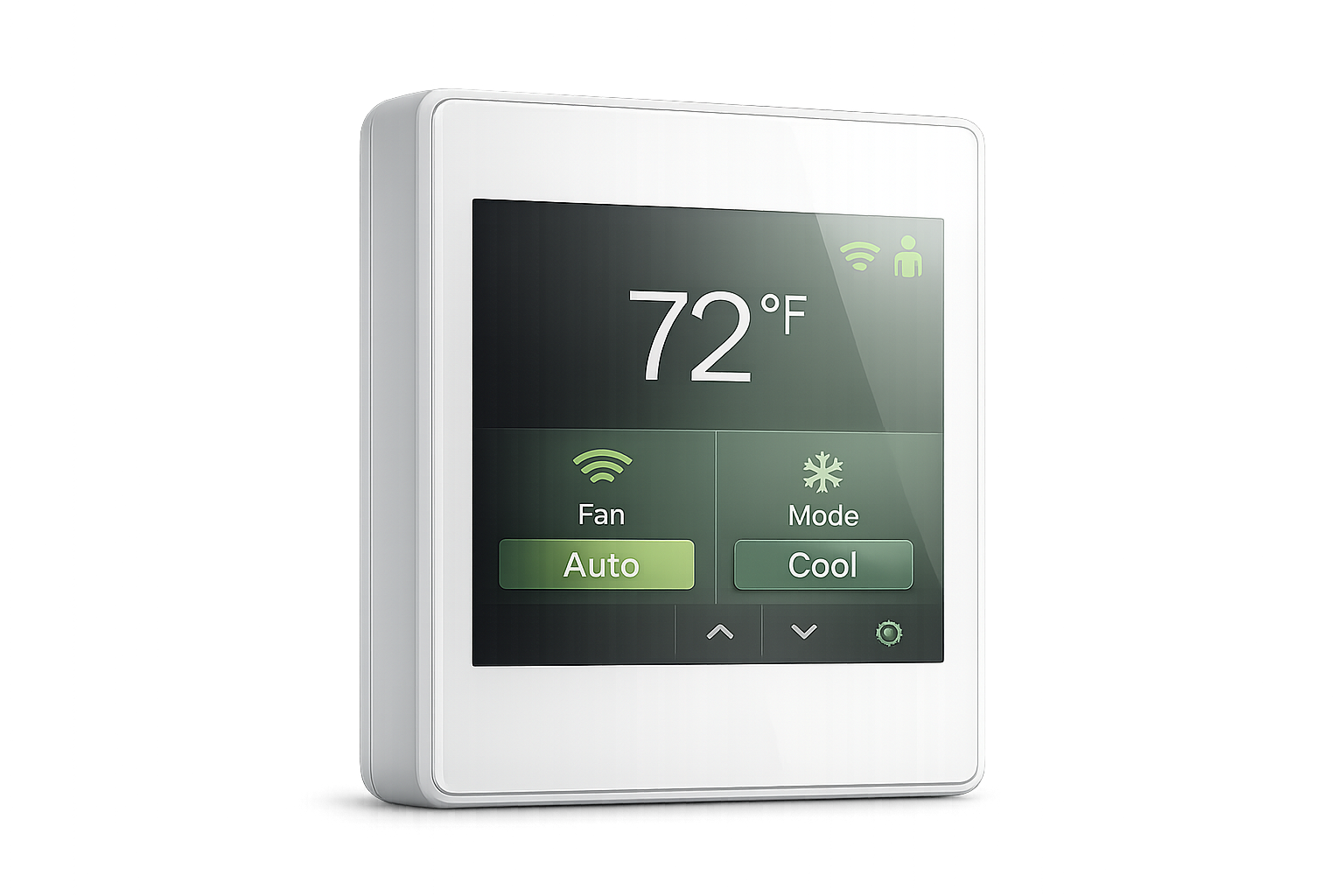

Schneider Electric SE8600 Series
Advanced rooftop unit and heat pump controllers with integrated indoor air quality monitoring. Features BACnet MS/TP, Modbus RTU, and optional Zigbee Pro for wireless connectivity. Suitable for offices, schools, healthcare, and commercial buildings.
| Model | Application | Protocol | Humidity Control | Outputs | Voltage | Notes | |
|---|---|---|---|---|---|---|---|
| SE8650U0B11 | RTU / Heat Pump / IAQ | BACnet MS/TP, Modbus RTU, Zigbee Pro | Yes | 4 Universal, 5 Relay | 24 VAC | RH sensor & control, scheduling, touch display, white case | Request Quote → |
⚠️ Product Alert
Zigbee Pro wireless communication requires the VCM8000V5045P communication module, sold separately.
Frequently Asked Questions
What is the difference between the SE8600 and VT7600 series?
The SE8600 is an advanced controller with a colour touch display, integrated RH sensing, IAQ monitoring, and multi-protocol support including Zigbee Pro. The VT7600 is a programmable thermostat suited for simpler RTU and heat pump staging applications.
Does the SE8650U0B11 support Modbus RTU?
Yes. The SE8650U0B11 supports BACnet MS/TP, Modbus RTU, and Zigbee Pro (with optional VCM8000V5045P module) for integration with most building automation systems.
What applications is the SE8600 series designed for?
The SE8600 series is designed for rooftop units, heat pumps, and indoor air quality control in offices, schools, healthcare facilities, hotels, and commercial buildings requiring humidity and CO2 monitoring.
Need a different controller?
We can source any Schneider Electric controller. Submit a quote request with your part number.
Request a Quote
