VB-8303-0-5-16

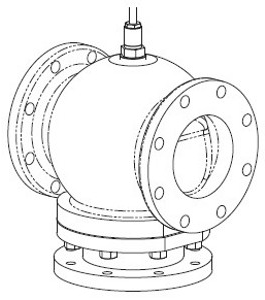

6-inch flanged 3-way globe valve body with balanced plug technology. Suitable for mixing or diverting water and glycol in large commercial HVAC systems. Not rated for steam.
Certifications: ANSI 125
Temperature Range: 19–280°F (-7–138°C)
Request a Quote →Specifications
| Size | 6 in |
| Configuration | 3-Way Mixing/Diverting |
| Connection | Flanged |
| Cv | 500 |
| Media | Water, Glycol 25–50% |
| Body Material | Cast Iron |
| Trim Material | Brass |
| Stem Material | Stainless Steel 316 |
| Pressure | 200 psig @ 150°F |
| Notes | Cast iron body, balanced plug, no steam |
Applications
- Heating & Cooling Coil Bypass
- Large Commercial HVAC Systems
- Chilled Water Systems
- Hot Water Systems
