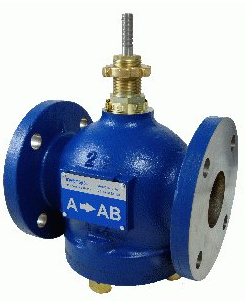

VB-8213-0-5-15
5-inch flanged 2-way globe valve body with balanced plug technology. Supports water, steam, and glycol in commercial HVAC applications.
Temperature Range: 19–280°F (-7–138°C)
Request a Quote →Specifications
| Size | 5 in |
| Configuration | 2-Way |
| Connection | Flanged |
| Cv | 240 |
| Media | Water, Steam, Glycol 25–50% |
| Body Material | Cast Iron |
| Trim Material | Brass |
| Stem Material | Stainless Steel 316 |
| Pressure | 200 psig @ 150°F |
| Notes | Cast iron body, balanced plug, brass trim |
Applications
- Commercial HVAC Systems
- Chilled Water Systems
- Hot Water Systems
- Steam Control
- Building Automation Systems
