VB-7211-0-4-06

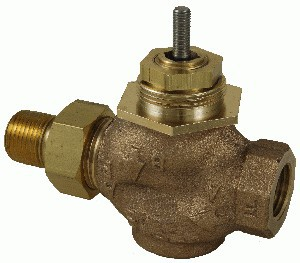

3/4-inch union-NPT 2-way bronze globe valve body from the Venta VB-7200 series. Supports water, steam, and glycol — suitable for small terminal unit and zone control applications.
Certifications: ANSI 250
Temperature Range: 19–280°F (-7–138°C)
Request a Quote →Specifications
| Size | 3/4 in |
| Configuration | 2-Way |
| Connection | Union-NPT |
| Cv | 7.5 |
| Media | Water, Steam, Glycol 25–60% |
| Body Material | Bronze |
| Trim Material | Brass |
| Stem Material | Stainless Steel 316 |
| Pressure | 400 psig @ 150°F |
| Notes | Bronze body, brass trim, stem up open |
Applications
- Terminal Unit Control
- Zone Valve Applications
- Steam Control
- Fan Coil Units
- Building Automation Systems
