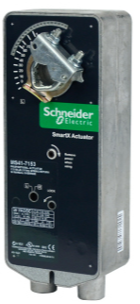

MA41-7153-502
High-torque SmartX direct-coupled spring return actuator for butterfly valves, dampers, and globe valves. On/off control with brushless DC motor and two SPDT auxiliary switches.
Certifications: NEMA 1, NEMA 2
Operating Temp: -22–140°F (-30–60°C)
Request a Quote →Specifications
| Type | Electric, Spring Return |
| Torque | 133 in-lb (15 N·m) |
| Voltage | 24 VAC/VDC, 22–30 VDC |
| Signal | 2-Position (On/Off) |
| Fail Position | Spring Return |
| Aux Switch | 2 SPDT |
| Rotation | 95° (adjustable 30–95°) |
| Use | Butterfly Valves, Dampers, Globe Valves |
| Notes | 2 SPDT aux switch, NEMA 1/2, linkage req. for globe valves |
Applications
- Butterfly Valve Control
- Damper Control
- Globe Valve Control
- HVAC Air Handling Units
- Building Automation Systems
