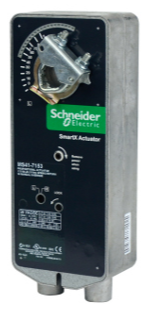

MA41-7073-502
SmartX direct-coupled spring return actuator for dampers and globe valves. On/off control with two SPDT auxiliary switches. Linkage required for globe valve applications.
Certifications: NEMA 1, NEMA 2
Operating Temp: —
Request a Quote →Specifications
| Type | Electric, Spring Return |
| Torque | 60 in-lb (7 N·m) |
| Voltage | 24 VAC |
| Signal | 2-Position (On/Off) |
| Fail Position | Spring Return |
| Aux Switch | 2 SPDT |
| Rotation | 95° (adjustable 30–95°) |
| Use | Dampers, Globe Valves |
| Notes | 2 SPDT aux switch, NEMA 1/2, linkage req. for globe valves |
Applications
- Damper Control
- Globe Valve Control
- HVAC Air Handling Units
- Building Automation Systems
