H958

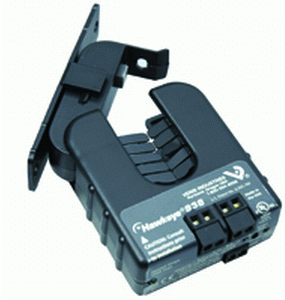

Split-core AC current switch with integrated SPST relay. Combines current switching and relay output in a single device — ideal for start/stop control and status monitoring of fans and pumps.
Certifications: CE, UL
Operating Temp: 5–140°F (-15–60°C)
Request a Quote →Specifications
| Type | Switch/Relay |
| Housing | Split-Core |
| Range | 2.5–135 A |
| Output | N.O. SPST, 12VDC Coil |
| Accuracy | — |
| Notes | Switch + relay combo, UL & CE |
Applications
- Building Automation Systems
- Fan & Pump Start/Stop Control
- HVAC Motor Proving
- AHU Fan Proving
- Combined Switch & Relay Applications
