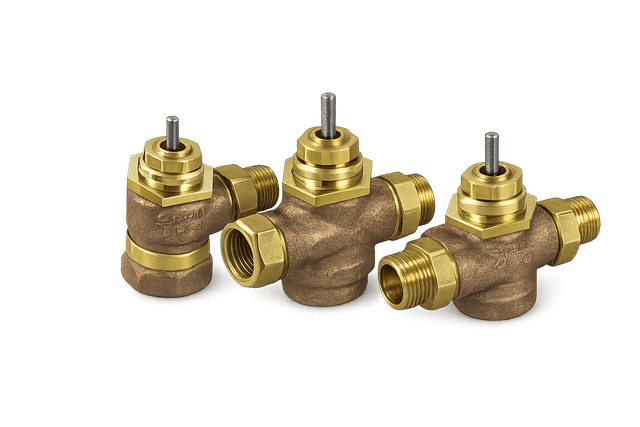

VB-7211-Series
The Schneider Electric VB-7211 Series is a versatile bronze globe valve family from the Venta VB-7200 product line, designed for chilled water, hot water, steam, and glycol (up to 60%) control in commercial HVAC and building automation systems. Available in 1/2–2 inch union-NPT sizes with Cv ranging from 1.3 to 20+, the VB-7211 Series covers 2-way and 3-way configurations in straightway and angle body patterns. Bronze body with brass trim, stainless steel 316 stem, and spring-loaded PTFE/EPDM packing. Equal percentage flow characteristic with rangeability greater than 100:1 for accurate modulating control. Rated to 250 ANSI class. Compatible with electric and pneumatic actuators — available with or without actuator for field assembly. As an authorized Schneider Electric distributor, NSI can source any VB-7211 configuration. Submit a quote request with your part number or specs today.
Certifications: ANSI 250
Temperature Range: 19–280°F (-7–138°C)
Request a Quote →Specifications
| Size | 1/2–2 in |
| Configuration | 2-Way / 3-Way |
| Connection | Union-NPT |
| Cv | Multiple |
| Media | Water, Steam, Glycol 25–60% |
| Body Material | Bronze |
| Trim Material | Brass |
| Stem Material | Stainless Steel 316 |
| Pressure | 400 psig @ 150°F |
| Notes | 60+ configurations - contact us with your spec |
Applications
- Terminal Unit Control
- Fan Coil Units
- Zone Valve Applications
- Steam Control
- Building Automation Systems
- Commercial HVAC
