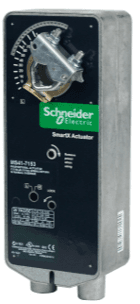

MA41-7153-502
The Schneider Electric MA41-7153-502 is a high-torque SmartX direct-coupled spring return actuator for butterfly valve, damper, and globe valve control in commercial HVAC and building automation systems. The MA41-7153-502 provides on/off two-position control at 24VAC/VDC with a brushless DC motor and two SPDT auxiliary switches for independent equipment interlocking. Torque of 133 in-lb makes the MA41-7153-502 suitable for larger butterfly valves and dampers requiring higher closing force. The spring return mechanism drives the MA41-7153-502 to its fail-safe position on power loss. Direct-couple design mounts to a damper shaft without brackets — linkage kit required for globe valve applications. Rated NEMA 1/2 with 95° rotation adjustable from 30–95°. Die cast aluminum housing. Formerly sold under TAC, Barber Colman, and Erie brands. As an authorized Schneider Electric distributor, NSI stocks the MA41-7153-502 with fast lead times. Request a quote today.
Certifications: NEMA 1, NEMA 2
Operating Temp: -22–140°F (-30–60°C)
Request a Quote →Specifications
| Type | Electric, Spring Return |
| Torque | 133 in-lb (15 N·m) |
| Voltage | 24 VAC/VDC, 22–30 VDC |
| Signal | 2-Position (On/Off) |
| Fail Position | Spring Return |
| Aux Switch | 2 SPDT |
| Rotation | 95° (adjustable 30–95°) |
| Use | Butterfly Valves, Dampers, Globe Valves |
| Notes | 2 SPDT aux switch, NEMA 1/2, linkage req. for globe valves |
Applications
- Butterfly Valve Control
- Damper Control
- Globe Valve Control
- HVAC Air Handling Units
- Building Automation Systems
